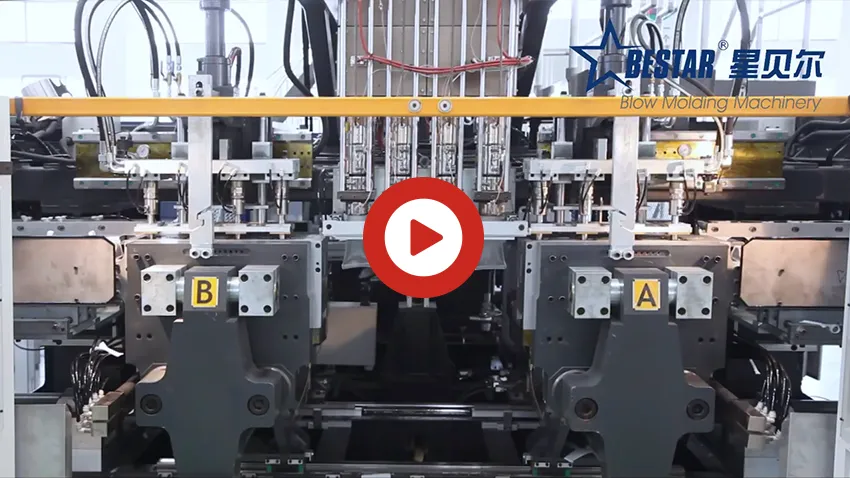

Bestar Machinery provides customers with 1.6 liters soy sauce blow molding machine, used in blow molding soy sauce bottles, edible vinegar bottles, milk bottles, yogurt bottles, etc. Bestar Machinery will provide professional blow moulding machine solution according to your needs up to CoEx 6-layer.
Cavities per mould: 4 folds, cycle time: 26 seconds, article output: 26585 pcs/day, net weight: 115±3g.
Article | 1.6 Liters Soy Sauce |
---|---|
Cavities Per Mould | 4 folds |
Double/Single Stations | Double Station |
Net Weight | 115±3g |
Cycle Time | 26 seconds |
Article Output | 26585 pcs/day |
Machine Type | B20D-900 |
Austria B&R new generation control system, with Intel Atom 1.46G low-power 64-bit processor, integrated control, direct display of machine running parameters, and can be freely adjusted through the panel. Automatic fault diagnosis, automatic alarm, and operation screen are displayed directly
18.5” touchscreen display with a more user-friendly interface. Integrated 100-point axial wall thickness control to accurately control the wall thickness of the product, raw material costs saving
Programmable timer for heating control and temperature reduction for overnight shut down
External USB interface makes reading and writing data conveniently
Ethernet network Remote service access / remote diagnosis and correct error parameters
Flexible upgrade options
6-Fold ReCo 3-layer Extrusion Head,with View Stripe
Precise and accurate die head design-streamline, no blind angle and faster color change
Lower back pressure, extending service time of extruder unit and gear box
Multi-cavity flow channel, easy to control flow
Multi-layer co-extrusion head with heart curve or sprial mandrel
Single layer die head with offset spider
View stripe on die heads at request
