Blow Molding Machine Solutions by Application

Bestar Machinery provides extrusion blow molding solutions for plastic bottles, jerry cans, chemical barrels and large hollow products. We configure machines according to container size, material, bottle weight, required output and production needs. Explore our solutions by application to find suitable equipment for your packaging products.

Explore Blow Molding Solutions by Application

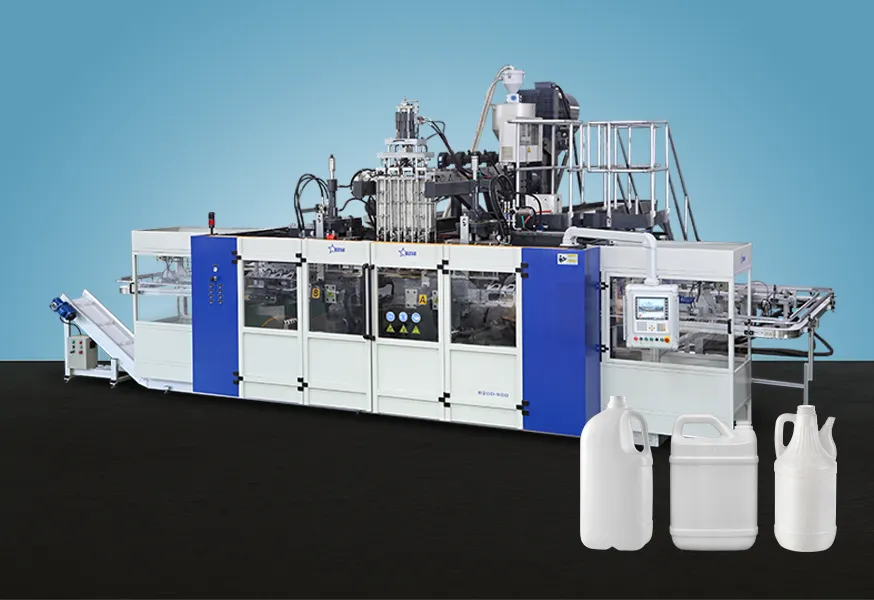

Food and Beverage Packaging Blow Molding Machine

Food Beverage Packaging Bottle

Blow Molding Machine Solution

Produce plastic bottles for milk, yogurt, sauces and condiment packaging. Machine selection can be based on bottle size, weight, cavity count and target output.

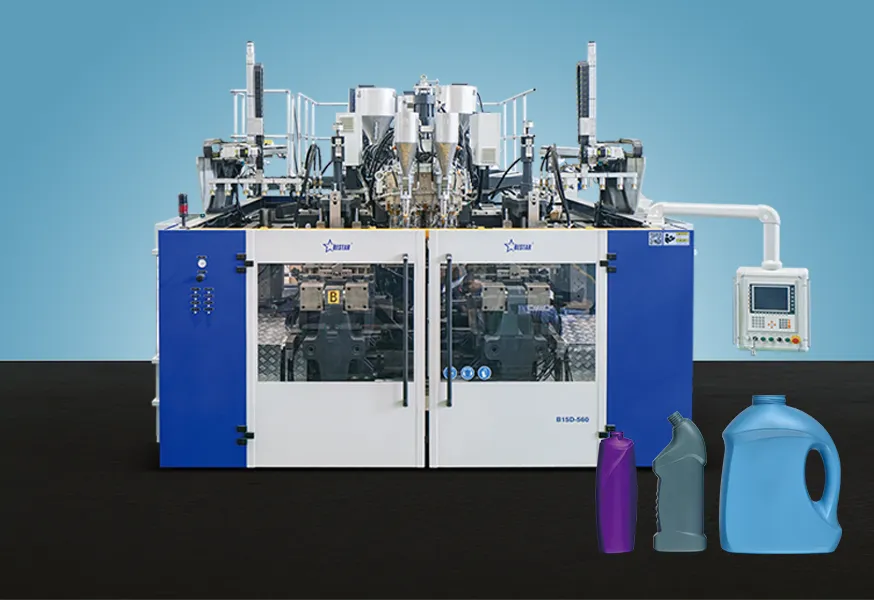

Daily Chemical Packaging Bottle

Blow Molding Machine Solution

Manufacture containers for shampoo, detergent, disinfectant, liquid soap and cosmetic products. Select the machine according to bottle shape, material, wall thickness and required production speed.

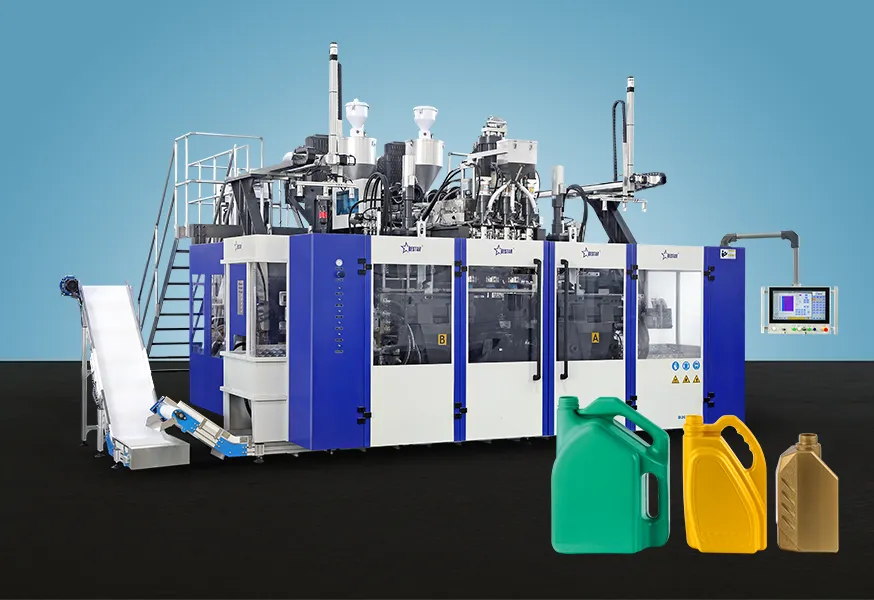

Lubricant Packaging Bottle

Blow Molding Machine Solution

Find blow molding solutions for motor oil, engine oil and industrial lubricant bottles or jerry cans. Consider container volume, handle design, wall thickness and multilayer requirements.

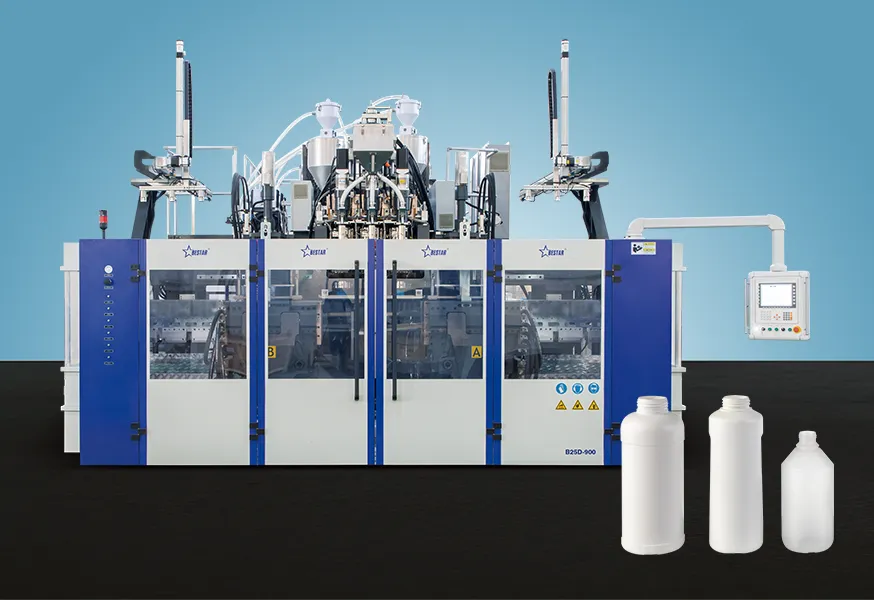

Pharmaceutical Packaging

Blow Molding Machine Solution

Explore machine configurations for medicine bottles, pill containers and dialysate packaging. Key considerations include container geometry, material requirements, neck accuracy and quality inspection.

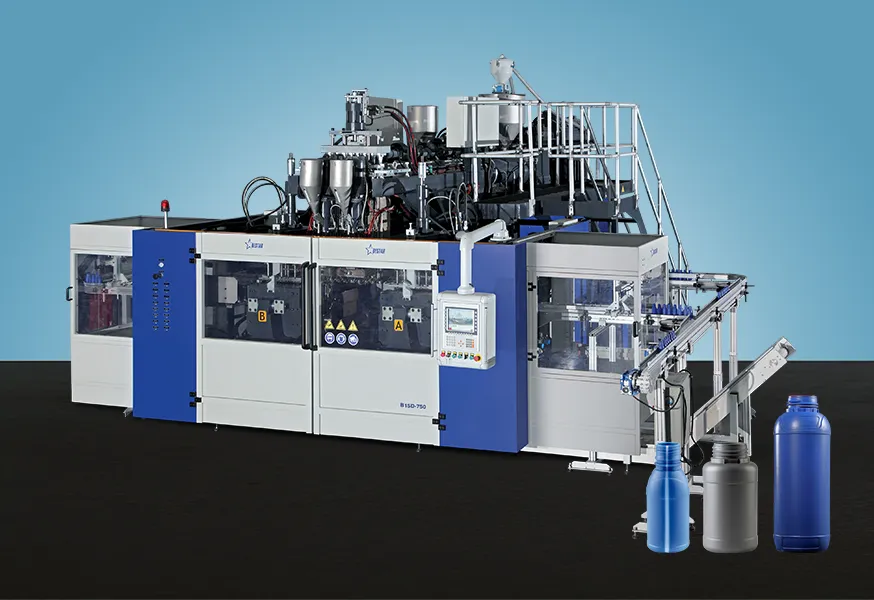

Pesticide Packaging Bottle

Blow Molding Machine Solution

Produce pesticide bottles and jerry cans with configurations selected for container design, wall thickness and chemical compatibility. Multilayer co-extrusion and leak testing can be considered where required.

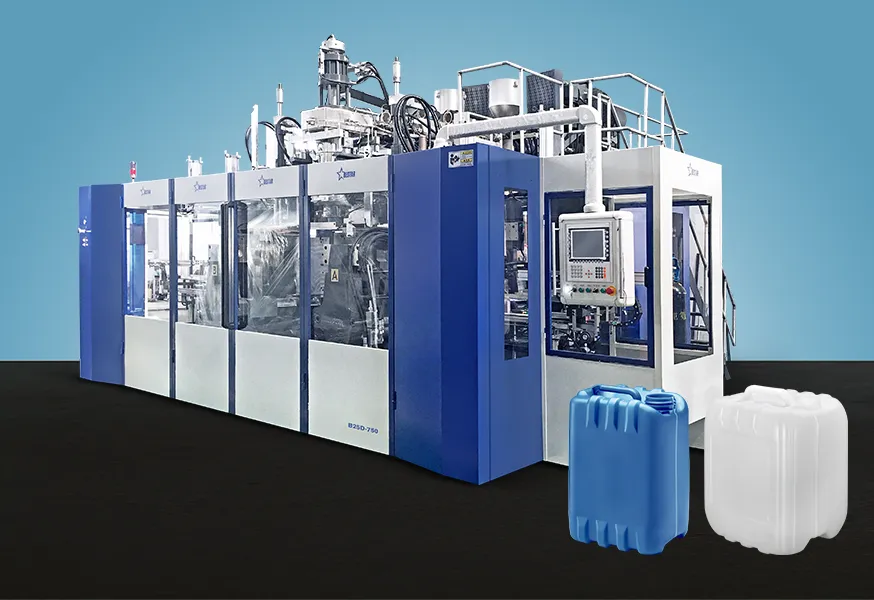

Chemical Stackable Barrel

Blow Moulding Machine Solution

Select machines for stackable chemical barrels and jerry cans based on container volume, handle structure, mold dimensions, wall distribution and output targets.

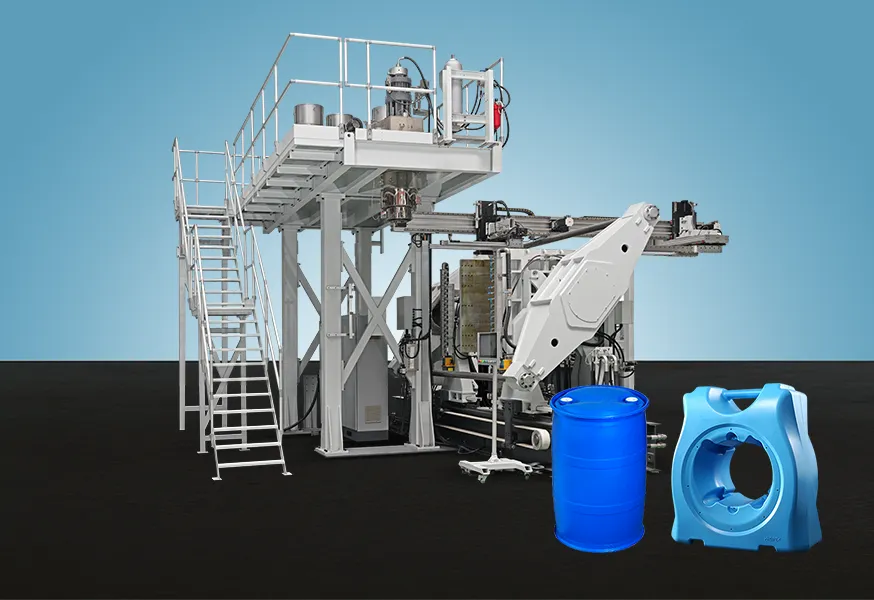

Large Hollow Products

Blow Moulding Machine Solution

Explore blow molding solutions for large hollow products such as industrial containers, water tanks, toolboxes and selected infrastructure parts. Machine selection depends on product dimensions, mold size, clamping force and extrusion capacity.

Blow Molding Machine Configuration Guides

All-electric Blow Molding Machine 1-6 Layers
Machine Type	BE2S-280		BE5D-380		BE10D-480		BE15D-620		BE20D-750		BE25D-750
Clamping force	20kN		50kN		100kN		150kN		200kN		250kN
Carriage stroke	280mm		380mm		480mm		620mm		750mm		750mm
Clamping stroke	140mm		200mm		220mm		220mm		280mm		400mm
Dry cycle time	1.8s		2.5s		2.8s		3s		3.2s		4.5s
Mold specification	Wmax	270mm	Wmax	370mm	Wmax	470mm	Wmax	620mm	Wmax	740mm	Wmax	740mm
	Hmax	270mm	Hmax	350mm	Hmax	400mm	Hmax	450mm	Hmax	500mm	Hmax	700mm
	T	2X95mm	T	2X100mm	T	2X120mm	T	2X140mm	T	2X140mm	T	2X250mm
	Mmax	2X60kg	Mmax	2X100kg	Mmax	2X150kg	Mmax	2X200kg	Mmax	2X250kg	Mmax	2X350kg
Air consumption	30m³/h		70m³/h		90m³/h		120m³/h		150m³/h		150m³/h
Typical configuration	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities
We will provide optimal solution according to your needs. Any machine type can be fitted with in-mold labeling.	100ml	0+2	100ml	4+4	100ml	6+6	500ml	6+6	500ml	6+6	10L	1+1
	500ml	0+1	500ml	3+3	500ml	4+4	1L	4+4	1L	5+5	15L	1+1
	1L	0+1	1L	3+3	1L	3+3	3L	2+2	2L	4+4	20L	1+1
			1.5L	1+1	1.5L	2+2	5L	1+1	3L	3+3	25L	1+1
			2L	1+1	5L	1+1	10L	1+1	5L	2+2	30L	1+1

Hydraulic Blow Molding Machine 1-6 Layers
Machine Type	B5D-380		B10D-480		B15D-560		20D-750		B30D-900		B40D-1150		B25D-750		B40D-1150
Clamping force	50kN		100kN		160kN		200kN		340kN		400kN		250kN		400kN
Drive power hydraulic	18.5kW		18.5kW+7.5kW								37kW+11kW
Carriage stroke	380mm		480mm		560mm		750mm		900mm		1150mm		750mm		1150mm
Dry cycle time	2.8s		3s		3.2s		3.6s		4s		5s		5s		5s
Mold specification	Wmax	370mm	Wmax	470mm	Wmax	550mm	Wmax	740mm	Wmax	890mm	Wmax	1140mm	Wmax	740mm	Wmax	1140mm
	Hmax	380mm	Hmax	400mm	Hmax	500mm	Hmax	500mm	Hmax	500mm	Hmax	500mm	Hmax	700mm	Hmax	650mm
	T	2X90mm	T	2X120mm	T	2X120mm	T	2X140mm	T	2X140mm	T	2X140mm	T	2X250mm	T	2X250mm
Air consumption	60m³/h		90m³/h		120m³/h		150m³/h		180m³/h		250m³/h		150m³/h		250m³/h
Typical configuration	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities	Volume	Cavities
We will provide optimal solution according to your needs. Any machine type can be fitted with in-mold labeling.	50ml	4+4	100ml	6+6	500ml	5+5	500ml	6+6	500ml	10+10	500ml	12+12	10L	1+1	7L	4+4
	100ml	3+3	500ml	4+4	1L	4+4	1L	5+5	1L	6+6	1L	8+8	15L	1+1	10L	3+3
	500ml	3+3	1L	3+3	3L	2+2	2L	4+4	2L	4+4	2L	6+6	20L	1+1	12L	3+3
	1L	2+2	1.5L	2+2	5L	1+1	4L	3+3	4L	3+3	4L	4+4	25L	1+1	15L	2+2
	2L	1+1	5L	1+1	10L	1+1	6L	2+2	5L	3+3	5L	4+4	30L	1+1	20L	2+2
									10L	2+2	6L	4+4	10L	2+2	25L	2+2
