In modern industrial manufacturing, producing durable, high-quality hollow plastic packaging at scale requires a delicate balance of massive force and surgical precision. Whether it is a multi-layer container for daily detergents, high-barrier pesticide bottles, or 25-liter stackable chemical barrels, the heavy lifting behind the scenes is driven by fluid power.

As a premier blow molding machine manufacturer, Bestar Machinery designs systems built to handle these rigorous demands. To truly understand why these systems are favored by global brands in the lubricant, pharmaceutical, and food sectors, it helps to pull back the curtain on the actual working principle of hydraulic blow molding machine technology.

Step 1: Plasticization and Parison Extrusion

The process begins inside the extrusion system. Raw plastic resin pellets (commonly HDPE or PP) are fed into a heated barrel where a rotating screw shears, melts, and mixes the material into a uniform, molten state.

For advanced applications, Bestar Machinery employs multi-layer co-extrusion technology (ranging from 1 to 6 layers, incorporating barrier materials like EVOH or Nylon). This molten plastic is then forced through an extrusion die head to form a continuous, hollow tube of hot plastic known as a parison.

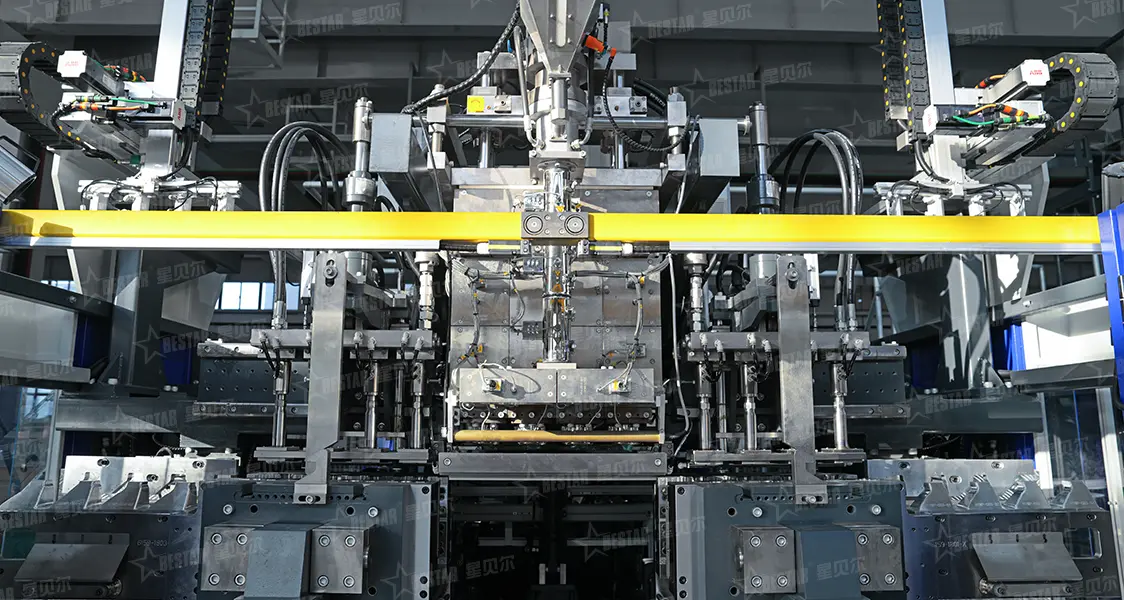

Step 2: Mold Enclosure and Hydraulic Clamping

Once the parison reaches the exact required length, the machine’s heavy machinery components take over. This is where the hydraulic system proves its worth.

The two halves of the heavy metal mold close around the hanging parison. A specialized hydraulic unit applies an intense, controlled clamping force to lock the mold halves tightly together. This massive pressure is absolutely critical; it ensures that the mold remains perfectly sealed against the high internal air pressures that follow, while simultaneously pinching and sealing the bottom edge of the hot plastic tube.

Step 3: Inflation (The Blow Molding Phase)

With the mold locked under hydraulic pressure, a blow pin (or blow needle) is introduced into the top or side of the trapped parison.

Compressed air is injected through the pin into the center of the molten plastic tube. The air pressure forces the hot, pliable parison to expand rapidly outward, stretching it until it presses flat against the cooled inner walls of the mold cavity. The plastic instantly takes on the precise shape, handles, and surface textures engineered into the mold design.

Step 4: Hydraulic Calibration and Controlled Cooling

While the air pressure holds the plastic firmly against the mold walls, internal cooling channels within the mold quickly lower the plastic’s temperature.

During this phase, the hydraulic system maintains steady, unyielding clamping pressure. Bestar Machinery integrates highly responsive proportional valves and PLC-driven oil temperature monitoring to stabilize this process. This ensures that even thick-walled containers cool uniformly without warping, maintaining strict dimensional accuracy.

Step 5: Mold Opening and Ejection

Once the plastic has solidified, the internal air pressure is vented. The hydraulic system swiftly retracts the clamping mechanism to open the mold halves. An automated mechanical manipulator or picker gently removes the finished product from the mold space. Any excess pinched plastic at the top or bottom (known as flash) is automatically trimmed away, leaving a clean, retail-ready container.

Conclusion:

The working principle of hydraulic blow molding machine systems relies on a flawless choreography between thermodynamic melting, high-pressure air inflation, and raw hydraulic force.

By utilizing advanced fluid dynamics and precise PLC control loops, a professional blow molding machine manufacturer like Bestar Machinery can deliver equipment that maximizes cycle speeds while keeping energy consumption low.

For factories handling heavy-duty industrial or complex multi-layer packaging, mastering this hydraulic rhythm is the definitive key to operational efficiency and uncompromised product quality.

FAQ:

Q1: Why do large blow molding machines rely on hydraulics?

A: Large containers require immense clamping force to stay sealed during inflation. Hydraulic cylinders deliver the massive tonnage and structural stability needed for heavy-duty production more cost-effectively than electric drives.

Q2: What is a parison?

A: A parison is the hot, hollow tube of molten plastic extruded from the machine’s die head. It serves as the raw form that is clamped inside the mold and inflated to create the final container.

Q3: Can these hydraulic machines produce multi-layer bottles?

A: Yes. By pairing the hydraulic clamping unit with a co-extrusion die head, the system simultaneously extrudes up to six plastic layers. This advanced setup allows for the seamless integration of barrier materials like EVOH or Nylon.

Q4: Which industries use hydraulic blow molding the most?

A: Industries requiring robust packaging rely on these systems for high-strength, bulk production. This includes manufacturers of automotive lubricants, agricultural chemicals, heavy-duty detergents, and large food storage containers.
