The manufacturing of shampoo bottles is a highly automated process. Currently, the vast majority of shampoo bottles on the market are produced using extrusion blow molding machine technology.

Extrusion Blow Molding Machine Process:

• Extrusion of Tubular Parison: Plastic pellets are heated and melted, then extruded through a donut-like annular die to form a vertically hanging hollow plastic tube, known as a “parison.”
• Mold Closing: Two mold halves rapidly close together, clamping the parison between them. The cutting edges of the mold trim and seal the top and bottom of the parison.
• Blowing: A blow pin is inserted into the parison, and high-pressure air is injected, causing the softened parison to expand and tightly adhere to the inner walls of the cold mold.
• Cooling and Setting: The pressure is maintained for a period to allow the product to fully cool and solidify.

• Mold Opening and Ejection: The mold opens, and the formed product is ejected. Excess flash (waste material generated during trimming) must be removed.

Blow Molding Machine Features:

• Advantages: blow molding machine has low mold cost, high production efficiency, suitable for large products, and the product has a seamless surface.
• Disadvantages: Slightly poorer wall thickness control (the parison sags due to its own weight), lower precision of the bottle mouth, and the need to trim flash.
• Typical Products: Laundry detergent bottles, shampoo bottles, chemical barrels, pesticide bottles etc.

About Suzhou Bestar Blow Molding Machinery Co., Ltd:

Beier Group and Bestar company are same owner And Bestar has been established for more than 19years. Bestar provides customers high efficiency, innovative, energy saving blow molding machinery solutions. Bestar blow molding machines sold to more than 60 countries.

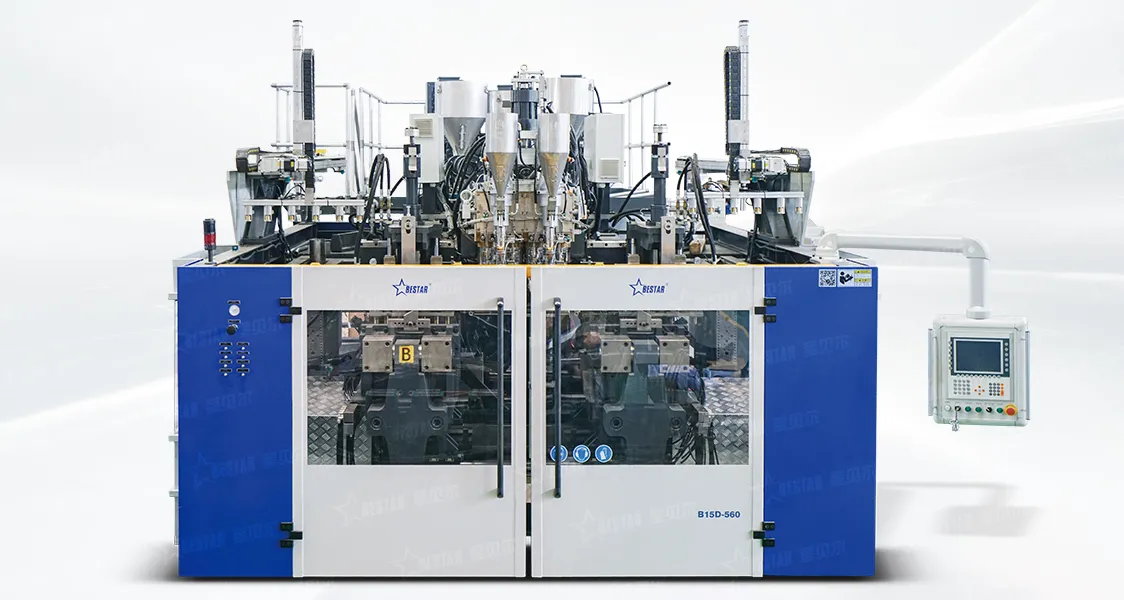

Series blow molding machine is used for blowing 100ml-1250L HDPE PE PP products like milk bottles, daily chemical packaging bottles, jerry cans, pesticide bottles / medicine bottles and stacking barrels.
