How Blow Molding Machine Produce Plastic Stacking Drums

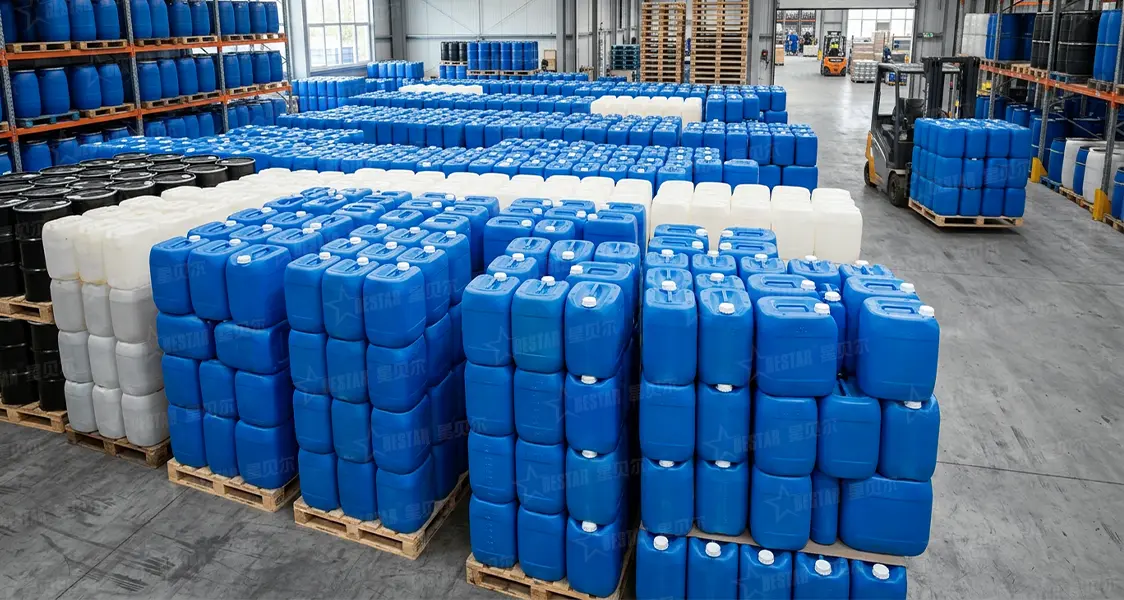

Walk into any chemical plant or global warehouse, and you will see them: interlocking plastic stacking drums. Engineered to withstand massive vertical pressure and survive rough transit, these containers are logistics workhorses. Transforming raw plastic pellets into a UN-certified drum requires extrusion blow molding (EBM)—a continuous, highly calibrated process balancing heat, pressure, and precision engineering.

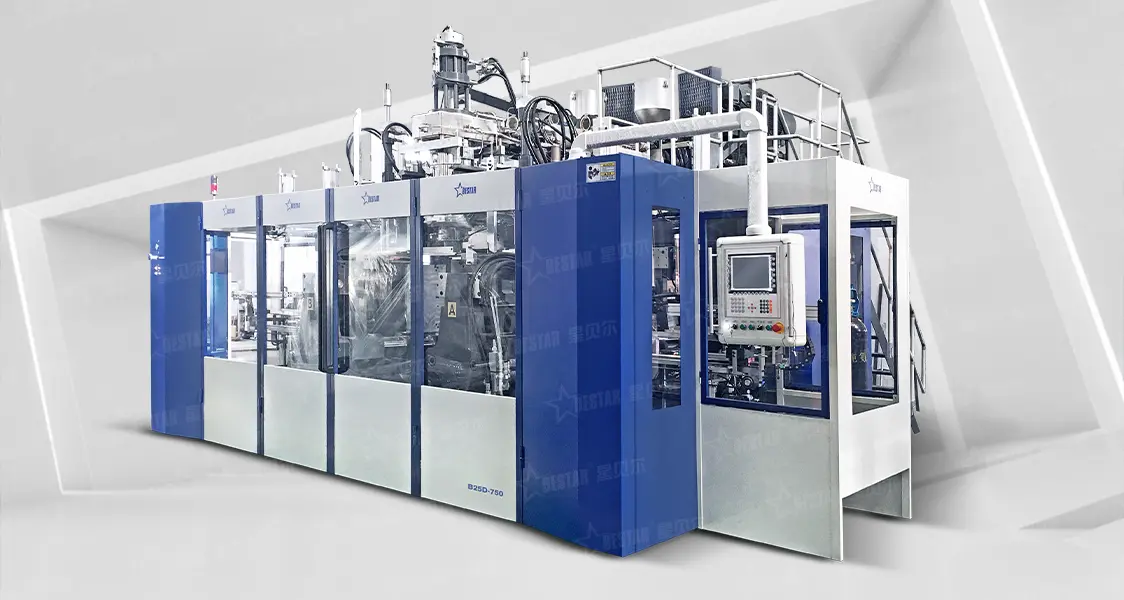

To achieve the tight tolerances needed for plastic containers, leading manufacturers often partner with machinery specialists like Bestar Machinery, whose industrial blow molding machines are custom-engineered for plastic stacking drums production. Here is a look at how modern EBM systems get the job done.

Plastic Stacking Drums Packaging: Mastering the Blow Molding Workflow

Material Formulation:

Industrial drums demand exceptional environmental stress-crack resistance (ESCR) and rigidity, making High-Density Polyethylene (HDPE) the universal choice. Raw HDPE pellets are blended with UV stabilizers and colorants in a hopper. For hazardous material transport, this mix must adhere to strict UN safety tolerances.

Extrusion and the Parison Drop

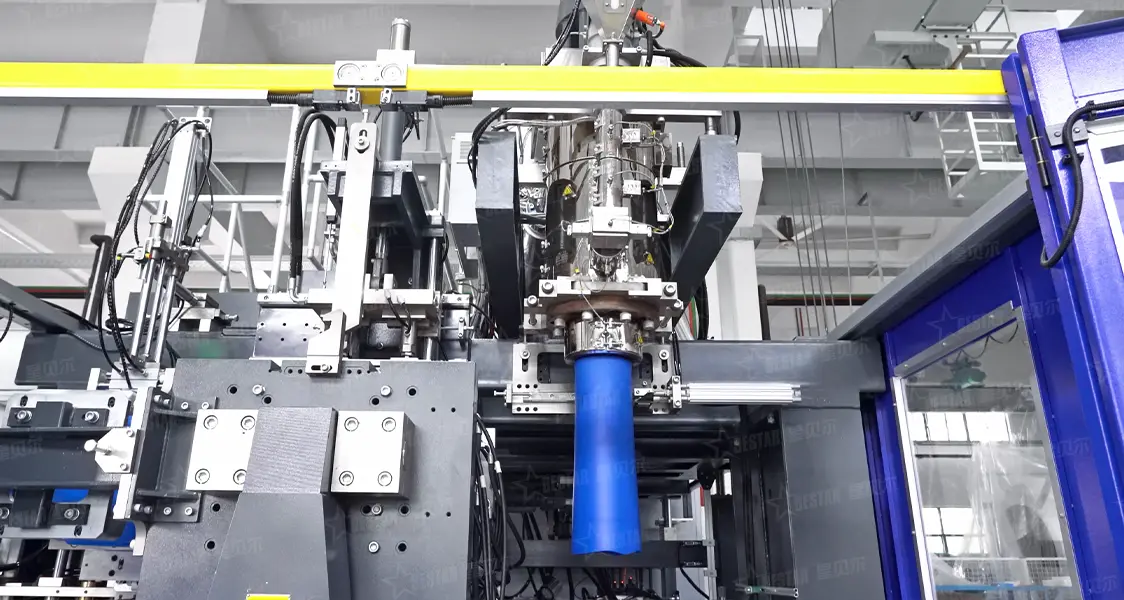

The HDPE enters the extruder, where intense friction melts it into a viscous liquid. For large drums, an accumulator head is used: it stores molten plastic and rapidly pushes it through a die to form a parison (a hollow tube).

Molding and Inflation

The two halves of a steel mold clamp around the parison, pinching the bottom closed. A blow pin is inserted at the top, blasting compressed air into the plastic. The rapid inflation forces the hot HDPE against the mold walls, forming the essential nesting profiles.

Rapid Cooling

Cooling dictates cycle time. Factory systems pump chilled water through channels inside the mold to rapidly draw heat away from the plastic. Rushing this stage can cause warping, shrinkage, or a structurally compromised barrel.

Automated Deflashing

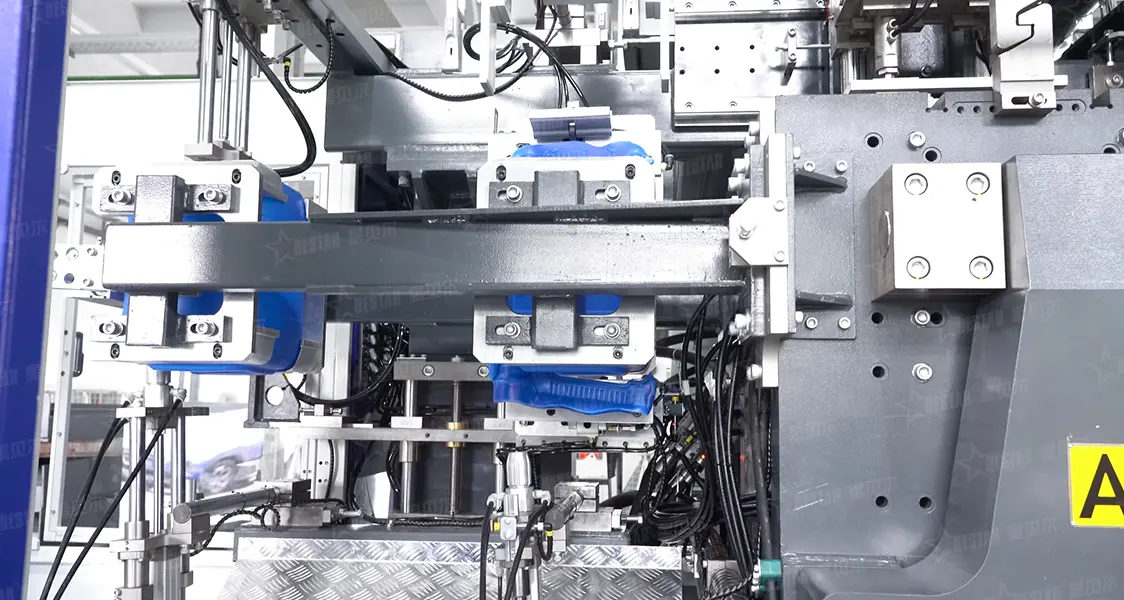

Once rigid, the drum is ejected. Robotic arms grab the container and pass it through a deflashing station where excess clamped plastic (“flash”) is trimmed from the top and bottom. This scrap is immediately ground and fed back into the hopper for zero-waste efficiency.

Quality Control & Testing

The final step is automated inline leak testing. The machine seals the drum and injects air to measure for microscopic pressure drops. Any failing barrel is instantly rejected from the line.

Conclusion:

Ultimately, the stacking drums blow molding machine is a masterclass in automated manufacturing. By combining dynamic thickness control, rapid thermodynamic cooling, and inline quality assurance, plastics manufacturers can continuously output plastic containers that keep global industrial supply chains moving safely and reliably.

FAQ:

Q1: What is the best plastic for blow molding stacking drums?

A: High-Density Polyethylene (HDPE) is the industry standard. It provides the perfect balance of chemical resistance, cold-temperature impact strength, and structural rigidity.

Q2: How long does it take to mold one stacking drum?

A: Cycle time depends on barrel size and cooling efficiency. A 20-liter jerrican may take 30–45 seconds.

Q3: Why do stacking drums have ridges and recessed tops?

A: These geometric features are structural. The interlocking top and bottom prevent lateral shifting in transit, while horizontal ridges act as structural beams to support vertical stacking weight.

Q4: What is an accumulator head, and why is it necessary?

A: Large drums require a lot of heavy plastic. An accumulator head stores the required volume of molten HDPE and injects it rapidly, preventing the hot parison from sagging under its own weight before the mold closes.

Q5: Are blow-molded industrial drums recyclable?

A: Yes. Production scrap (flash) is instantly reground and reused. At the end of their lifecycle, HDPE drums can be thoroughly cleaned, shredded, and recycled into new industrial plastic products.
