Advanced Multi-Layer Co-Extrusion in Blow Molding: The Future of High-Performance Plastic Packaging

In the rapidly evolving landscape of 2026, the demand for high-performance plastic containers is at an all-time high. From agrochemical bottles requiring high chemical resistance to food-grade containers needing oxygen barriers, Multi-Layer Co-Extrusion (COEX) has become the definitive technical solution.

Mechanics of Co-Extrusion Technology

Unlike traditional single-layer blow molding, Co-extrusion technology involves the simultaneous extrusion of multiple layers of plastic (ranging from 3 to 6 layers). This blow molding process allows manufacturers to combine the unique properties of different resins into a single, high-strength bottle wall.

1. Enhanced Barrier Protection (The EVOH Layer)

For pesticide and daily chemical packaging, preventing permeation is critical. By incorporating a middle layer of EVOH (Ethylene Vinyl Alcohol), our extrusion blow molding machine create a functional barrier that blocks oxygen and prevents volatile chemicals from leaking or degrading the container.

2. Sustainable Manufacturing with PCR Layers

With global sustainability mandates in 2026, the ability to use PCR (Post-Consumer Recycled) material is a competitive edge. Bestar’s 3-layer technology allows for a “Sandwich” structure:

• Outer Layer: Virgin HDPE for high-quality coloring and branding.
• Middle Layer: Up to 50% PCR material to reduce production costs.
• Inner Layer: Virgin material to ensure product safety and integrity.

3. Precision Control via 100-Point Parison Programming

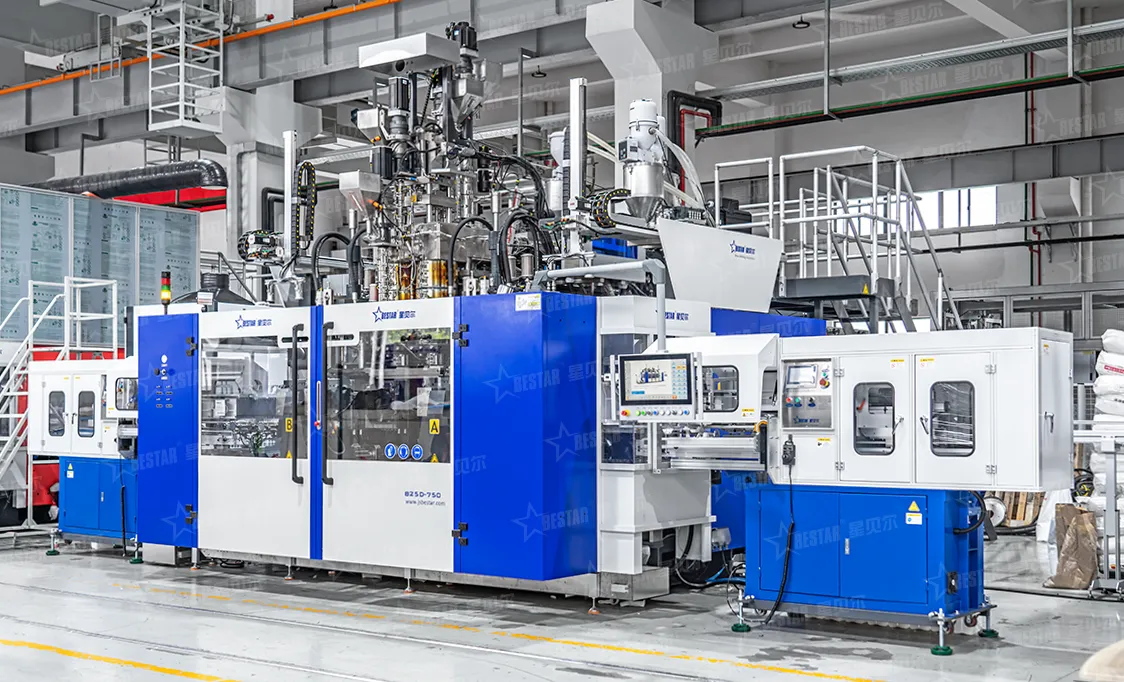

To ensure the integrity of a multi-layer structure, wall thickness must be perfectly uniform. Bestar’s extrusion blow molding machine utilize a 100-point parison controller, adjusting the die gap in real-time. This prevents “thin spots” at the corners of jerry cans or stackable barrels, significantly reducing the rejection rate.

Conclusion

Transitioning to multi-layer technology is no longer just an option for high-end blow molding machine manufacturers – it is a necessity for those looking to balance cost, performance, and environmental responsibility. Bestar Machinery continues to lead the way in 2026 with modular COEX systems designed for the next generation of plastic packaging.

FAQ:

Q: What are the main benefits of a 6-layer blow molding machine?

A: A 6-layer blow molding machine machine allows for a highly specialized structure, including adhesive layers and EVOH barriers, which provide superior protection for volatile chemicals and extend the shelf life of food products.

Q: Can I use different materials in each layer?

A: Yes. Co-extrusion allows you to combine materials like HDPE, LDPE, and PP, provided that compatible adhesive layers (tie layers) are used to bond them together.

Q: Does a multi-layer bottle affect the recycling process?

A: Most 3-layer HDPE bottles are fully recyclable. 6-layer bottles with EVOH are also becoming more recyclable thanks to advanced compatibilizers in modern recycling streams.

About Suzhou Bestar Blow Molding Machinery Co., Ltd:

Beier Group and Bestar company are same owner And Bestar has been established for more than 19years. Bestar provides customers high efficiency, innovative, energy saving blow molding machinery solutions. Bestar blow molding machines sold to more than 60 countries.

Series blow molding machine is used for blowing 100ml-1250L HDPE PE PP products like milk bottles, daily chemical packaging bottles, jerry cans, pesticide bottles / medicine bottles and stacking barrels.
