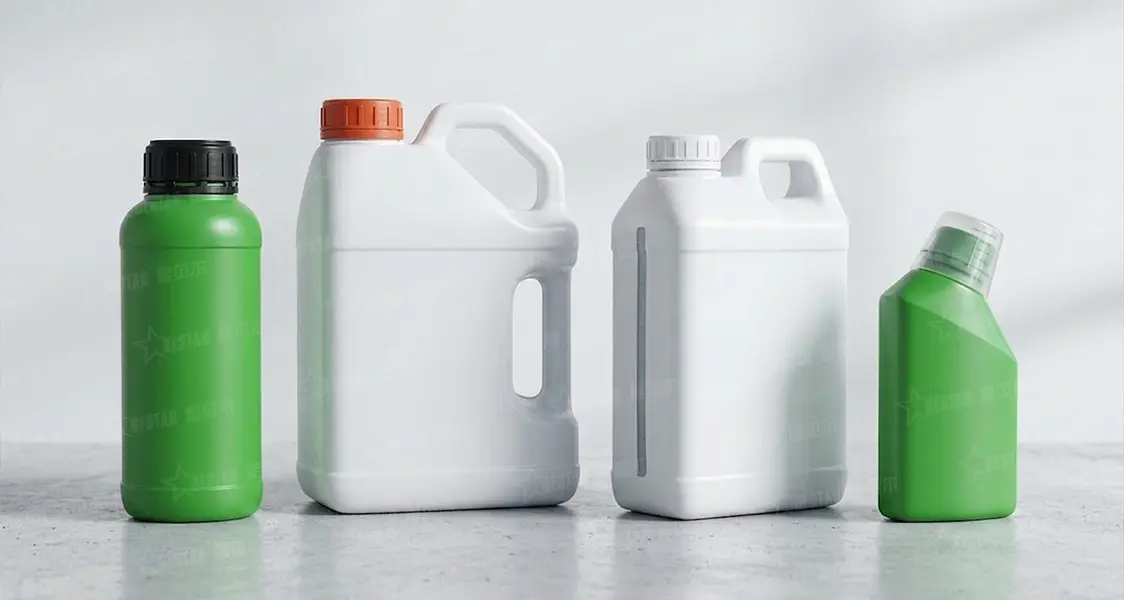

How Blow Molding Machine Manufacture Pesticide Bottle

Inside the Blow Molding Process for Pesticide Packaging:

Packaging hazardous crop protection chemicals requires far more than basic plastic processing. Agro-chemical formulations contain volatile active ingredients, aggressive solvents, and surfactants that easily degrade standard containers. To prevent environmental contamination, chemical permeation, and structural collapsing, commercial chemical processors rely on specialized extrusion blow molding machinery engineered specifically for heavy-duty containment.

Multi-Layer Co-Extrusion Technology: The Structural Shield

Unlike beverage or household liquid containers, chemical pesticide packaging demands multi-layer barrier structures. A specialized pesticide bottle blow molding machine typically utilizes 3-layer to 6-layer co-extrusion technology.

• Outer & Inner Layers: High-Density Polyethylene (HDPE) provides structural rigidity, impact resistance, and drop protection.
• Core Barrier Layer: Ethylene Vinyl Alcohol (EVOH) or Polyamide (PA) acts as an impermeable barrier preventing solvent evaporation, chemical migration, and oxygen degradation.
• Adhesive Tie Layers: Polyolefin-based tie resins bind the non-polar HDPE to the highly polar barrier layer, preventing delamination under mechanical stress.

Bestar Machinery integrate precision parison programming systems to control wall thickness dynamically. Operators extrude thicker material near key stress points, such as the bottle neck, pinch-offs, and corners. This prevents thin spots that could fail during transportation or drop tests.

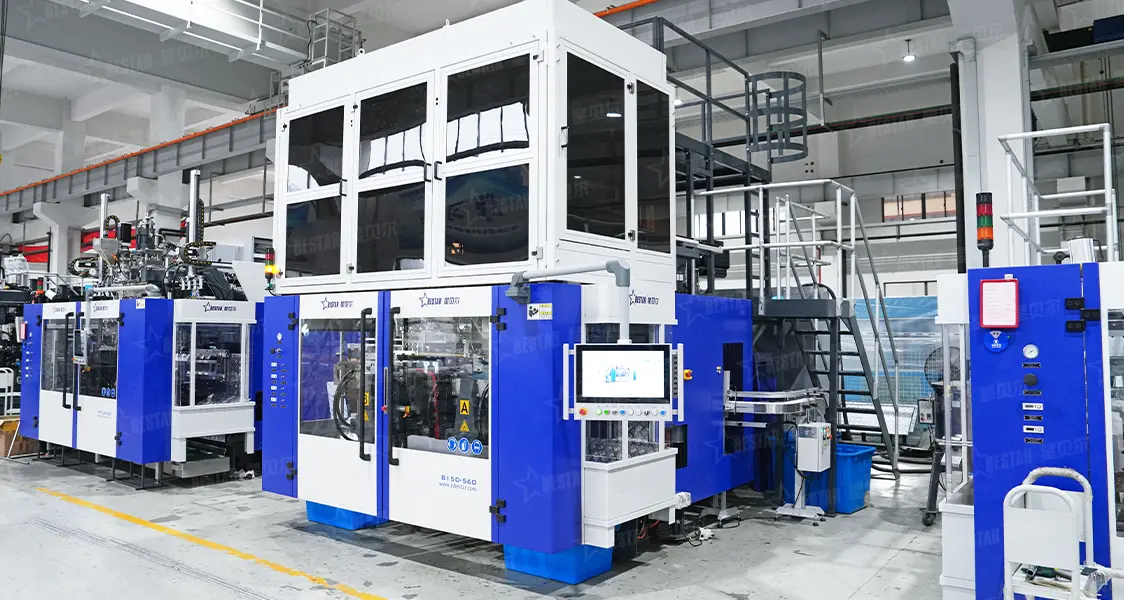

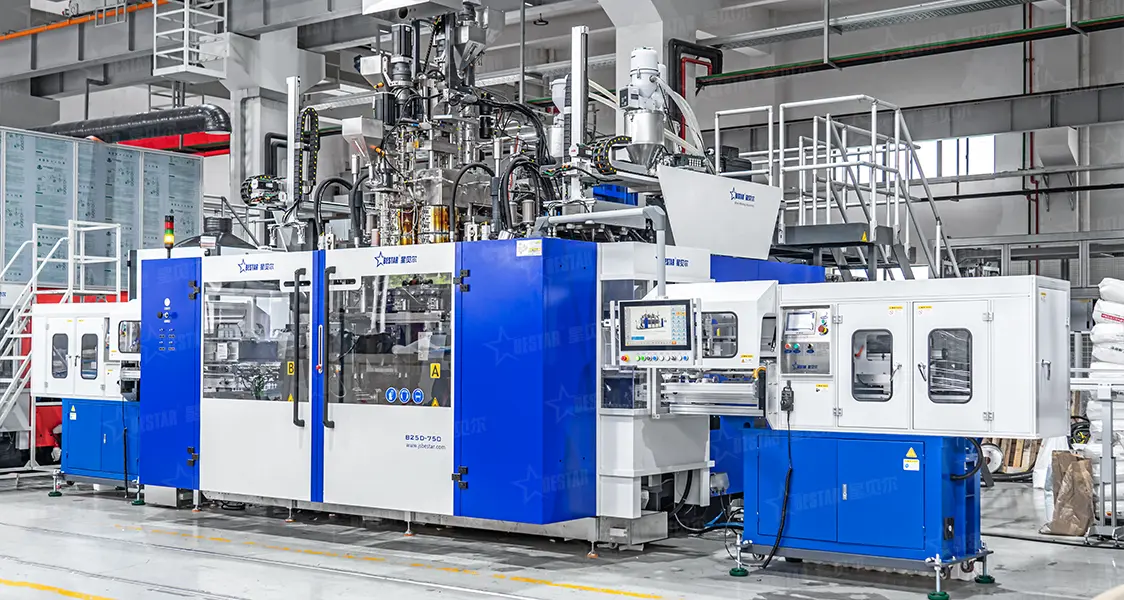

Pesticide Bottle Blow Molding Machine Process:

• Melt Homogenization: Raw plastic resin granules and barrier materials are plasticized in dedicated extruders designed for low shear and uniform heat distribution.
• Parison Formation: Co-extruded layers are pushed through a specialized die head to form a continuous hollow plastic tube (parison).
• Mold Clamping & Inflation: Precision steel or aluminum mold halves clamp around the parison, and high-pressure filtered air inflates the plastic against water-cooled mold walls.
• Deflashing & Quality Inspection: Fully automated equipment trims top and bottom flashings before transferring bottles to integrated leak detection and visual inspection units.

Through precise mold temperature control and automated handling, plastic blow molding machine solution from Bestar Machinery achieve high output speeds while maintaining strict regulatory compliance for chemical packaging safety.

FAQ:

Q1: Which plastics are used for pesticide bottles?

A: HDPE forms the rigid outer layer, while EVOH or Nylon (PA) creates an inner barrier layer to block solvent vapors and prevent chemical degradation.

Q2: Why use multi-layer co-extrusion?

A: Single-layer containers allow aggressive solvents to permeate the walls, leading to weight loss, container collapsing, and chemical leakage.

Q3: What is parison control?

A: It dynamically adjusts extrusion thickness, reinforcing high-stress areas like corners and necks to save material while maximizing container strength.

Q4: What safety tests do bottles undergo?

A: Finished containers undergo drop tests, hydrostatic pressure testing, stack compression tests, and automated leak detection.

Q5: How to select a machinery manufacturer?

A: Choose a provider like Bestar Machinery with expertise in multi-layer die heads, accurate wall-thickness controls, and heavy-duty clamping systems.

About Suzhou Bestar Blow Molding Machinery Co., Ltd:

Beier Group and Bestar company are same owner And Bestar has been established for more than 19years. Bestar provides customers high efficiency, innovative, energy saving blow molding machinery solutions. Bestar blow molding machines sold to more than 60 countries.

Series blow molding machine is used for blowing 100ml-1250L HDPE PE PP products like milk bottles, daily chemical packaging bottles, jerry cans, pesticide bottles / medicine bottles and stacking barrels.
