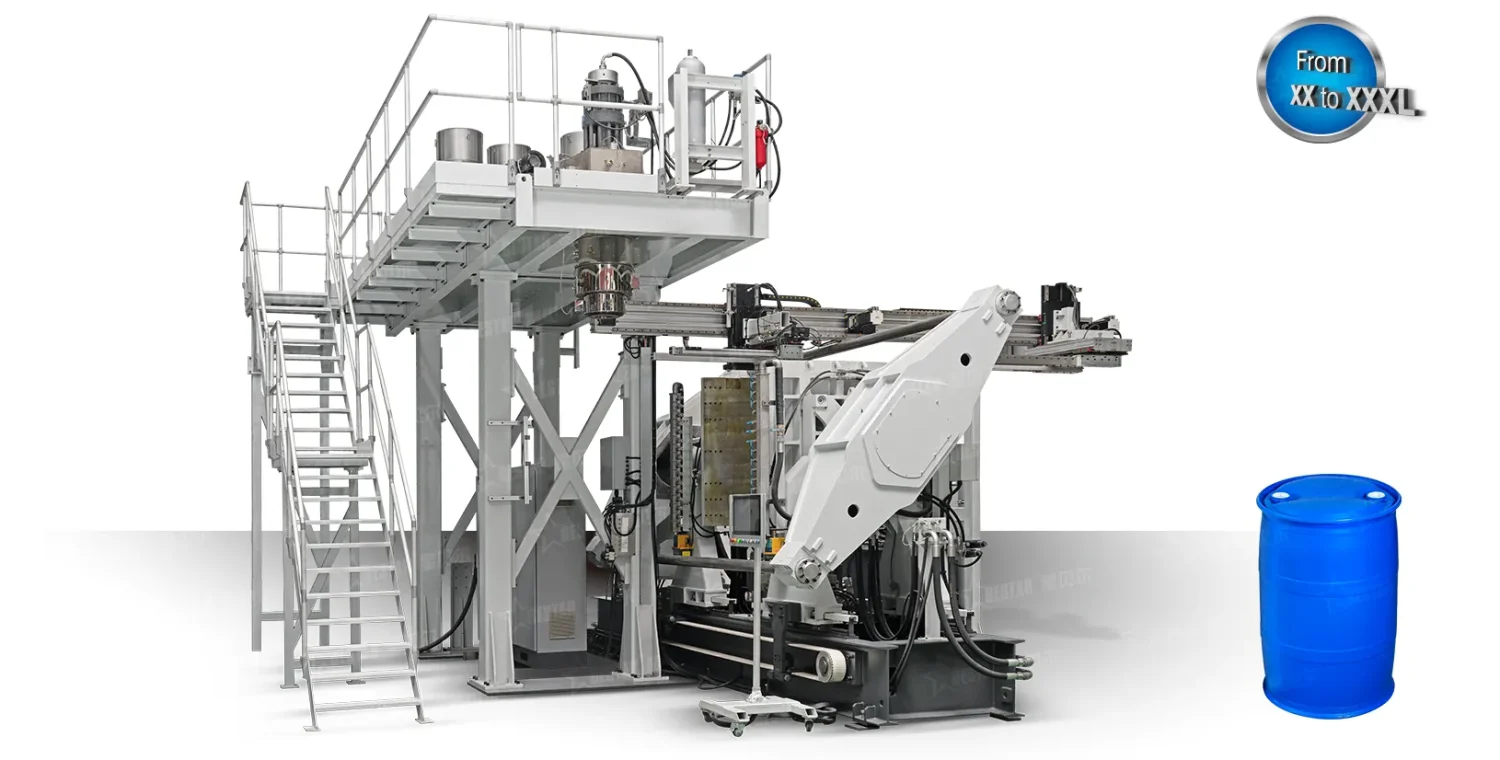

160L-1250L Large Hollow Blow Molding Machine
Bestar Machinery provides customers with 160L-1250L large hollow blow molding machine. The size and volume can be customized according to your requirements.
Bestar Blow Molding Machine Feature
Bestar Machine matched with any European molds to increase production capacity and competitive machine investment cost with high-speed applications.
Easily configured for monolayer and multi-layer applications.
Co-extrusion multilayer head with PWDS (Parison wall distribution System).
Single or multi parison.
Efficient electric drives on extrusion system.
In-mold labeling and view stripe capable.
Technical Parameter
| Machine type | ABM-500 | ABM-750 | ABM-1200 | ABM-1500 | |
|---|---|---|---|---|---|
| Max.volume of product | Liters | 160 | 250 | 900 | 1250 |
| Clamping force | kN | 500 | 750 | 1200 | 1500 |
| Mould platen dimension(W×H) | mm | 900×1200 | 1300×1400 | 1400×1600 | 1800×1600 |
| Distance between platens | mm | 600-1400 | 700-1700 | 700-2000 | 1000-2700 |
| Accumulator head(FIFO) | AH-1.8 AH-3.5 AH-5 AH-8 AH-12 | AH-16 AH-25 | AH-35 AH-50 | AH-65 AH-80 | |
| Accumulation volume(max.) | Liters | 1.8 3.5 5 8 12 | 16 25 | 35 50 | 65 80 |
| Die tooling diameter | mm | 30-100 50-120 50-150 70-200 70-250 | 100-300 200-380 | 200-400 350-600 | 500-700 500-800 |
| Extruder | E60 E70 E80 E90 BRD-60 | BRD-75 BRD-90 | BRD-100 | BRD-120 | |
| Screw diameter | mm | 60 70 80 90 60 | 75 90 | 100 | 120 |
| L/D | 25 25 25 25 38 | 38 38 | 38 | 38 | |
| Drive power | kW | 30 45 55 75 90 | 110 | 160 | 250 |
| Plasticizing capacity (max.) | kg/h | 90 130 165 220 300 | 380-450 | 650 | 900 |

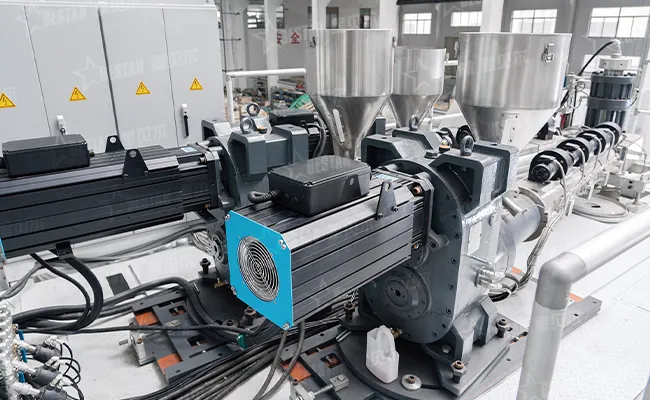

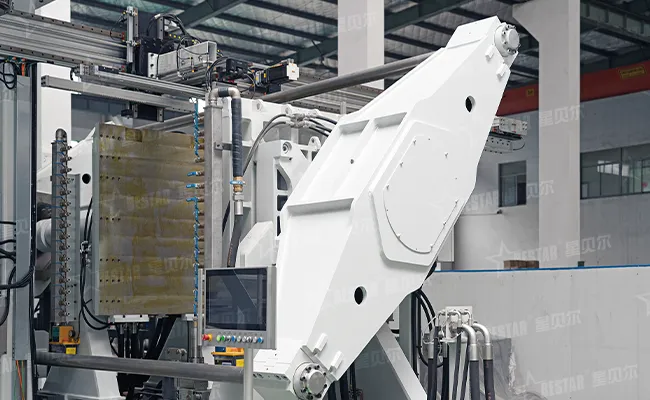

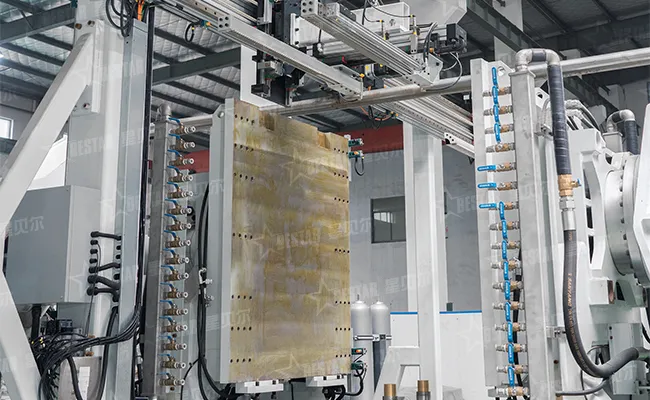

Blow Molding Machine Detail

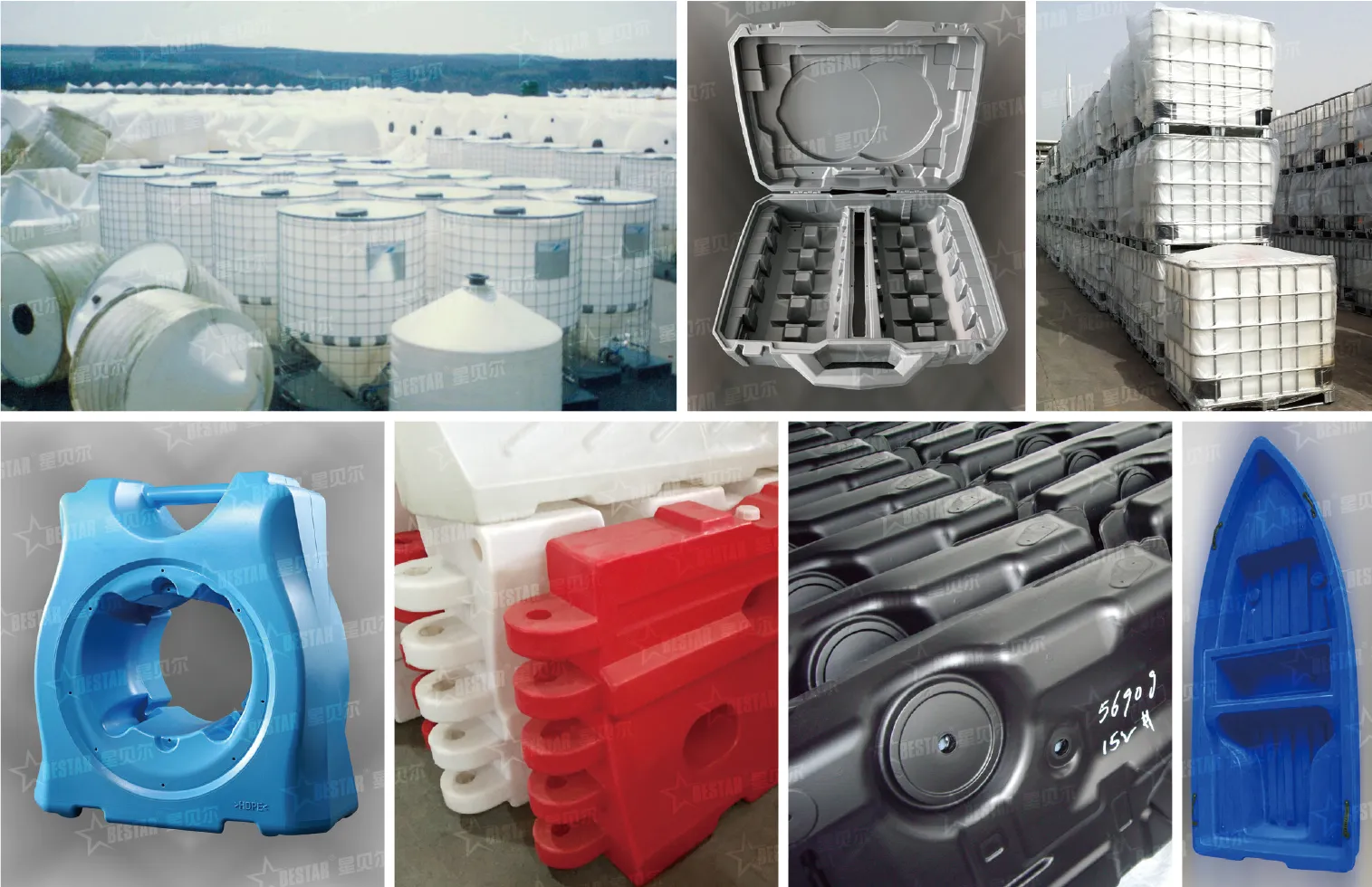

Final Blow-molded Product
The blow molding machine is widely used in tray, tree bucket, traffic facilities, plastic table board, packaging barrels, floating tank, fuel tank, medical bedplate & backboard, large-size toy, toolbox, water storage tank etc.
Blow Molding Machine FAQ
What is large hollow blow molding machine?
The large hollow blow molding machine is an industrial extrusion-based system that produces hollow plastic parts by inflating a heated plastic parison (tube-like piece of plastic) inside a mold cavity using compressed air. “Large” typically refers to machines capable of producing parts with capacities from 150 liters up to 2000 liters.
What plastic materials are used?
Common materials are HDPE, LDPE, PP, PVC, and engineering plastics like PC/ABS. HDPE is the most common due to its toughness and chemical resistance.
What products are typically made with these machines?
Common applications include:
Industrial: IBC ton barrels, 200L chemical drums, and plastic pallets.
Infrastructure: Septic tanks, water tanks, and road barriers (water horses).
Automotive: Large fuel tanks and air ducts.
Agriculture: Large fertilizer containers and floating docks.
How do you handle the “scrap” (flash)?
Large blow molding produces significant “flash” (excess plastic from the top/bottom). Modern machines include auto-deflashing units and conveyors that feed the scrap directly into a granulator to be recycled back into the process.
What key factors should I consider when choosing blow molding machine?
Part Size & Weight: Max part dimensions (L x W x H), volume, and weight.
Output/Production Rate: Required cycles per hour.
Material: Type of resin (HDPE, PP, PC, etc.) – dictates screw design and barrel temp zones.
Clamp Force & Mold Size: Enough tonnage to hold the mold closed under high internal pressure. Platen size must accommodate the mold.
Control System: Modern servo-electric drives for precision and energy savings vs. traditional hydraulic.
Post-Molding Needs: Consider in-mold labeling (IML), in-mold cooling, deflashing stations, leak testing, and palletizing.
How to improve the production efficiency of blow molding machine?
Shorten the molding cycle: By precisely optimizing core process parameters such as heating, blowing, and cooling, and adopting rapid mold change technology and efficient mold cooling systems, time is compressed in each cycle to maximize output per unit of time.
Ensure continuous and stable operation: Implement a strict preventive maintenance plan and introduce automation devices (e.g., automatic feeding, robotic part removal) to minimize non-productive time wasted due to equipment failures, manual operations, and product defects.
