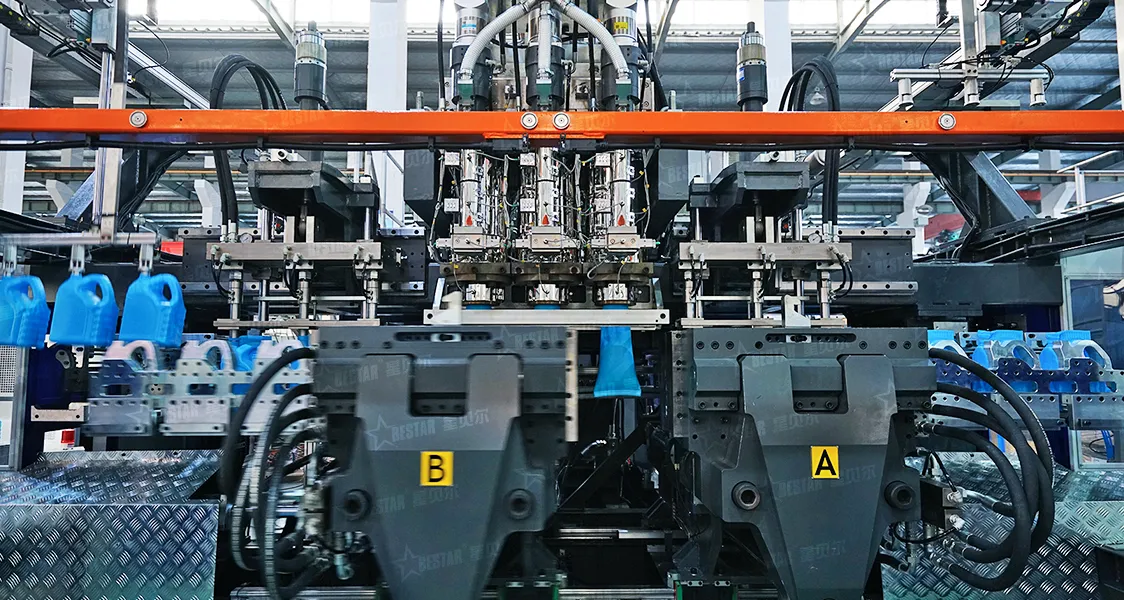

HDPE Blow Molding Machine
2025-05-16
HDPE blow molding machine is designed to manufacture hollow plastic products from High-Density Polyethylene (HDPE) resin using the extrusion blow molding process. HDPE is a popular choice due to its excellent strength, stiffness, chemical resistance, and recyclability, making it ideal for containers like bottles, jerry cans, drums, and tanks.
Types of HDPE Blow Molding Machine:
| Continuous Extrusion Blow Molding Machine | Intermittent Extrusion Blow Molding Machine |
|---|---|
| Shuttle blow molding machine: Molds shuttle in and out from under the continuously extruding parison. | Reciprocating screw blow molding machine: The screw moves axially like a plunger to extrude the parison after accumulating melt. |
| Rotary/Wheel blow molding machine: Multiple molds are mounted on a rotating wheel, passing under one or more extrusion heads. Very high output for items like milk bottles. | Accumulator head blow molding machine: As described above, essential for large HDPE parts. |
Why is HDPE a common material for blow molding?
1. Strength and Stiffness: Good structural integrity.
2. Chemical Resistance: Suitable for many household and industrial chemicals.
3. Impact Resistance: Durable.
4. Low Cost: Economical raw material.
5. Recyclability: Widely recycled.
6. Good Melt Strength: Important for forming a stable parison.
How can I control the wall thickness of my HDPE parts?
Through parison wall thickness control, also known as parison programming. This system dynamically adjusts the die gap during parison extrusion to vary its thickness along its length, compensating for areas that stretch more during blowing.
How does the HDPE blow molding process generally work?
Extrusion → Clamping → Blowing → Cooling → Ejection → Trimming
Blow molding machine common problems:
1. Parison issues: Inconsistent thickness, sag, melt fracture.
2. Part defects: Thin spots, holes, warpage, excessive flash, poor surface finish, incorrect dimensions.
3. HDPE blowing machine malfunctions: Hydraulic leaks, heater failures, sensor issues, clamping problems.
How often should the extruder screw and barrel be cleaned when processing HDPE?
This depends on usage, material quality, and color changes. Regular purging is good. A full teardown and cleaning might be needed if contamination occurs, after prolonged runs of certain colors/additives, or as part of a scheduled major maintenance. HDPE is relatively stable, but buildup can occur.
About Suzhou Bestar Blow Molding Machinery Co., Ltd:
Beier Group and Bestar company are same owner And Bestar has been established for more than 19years. Bestar provides customers high efficiency, innovative, energy saving blow molding machinery solutions. Bestar blow molding machines sold to more than 60 countries.

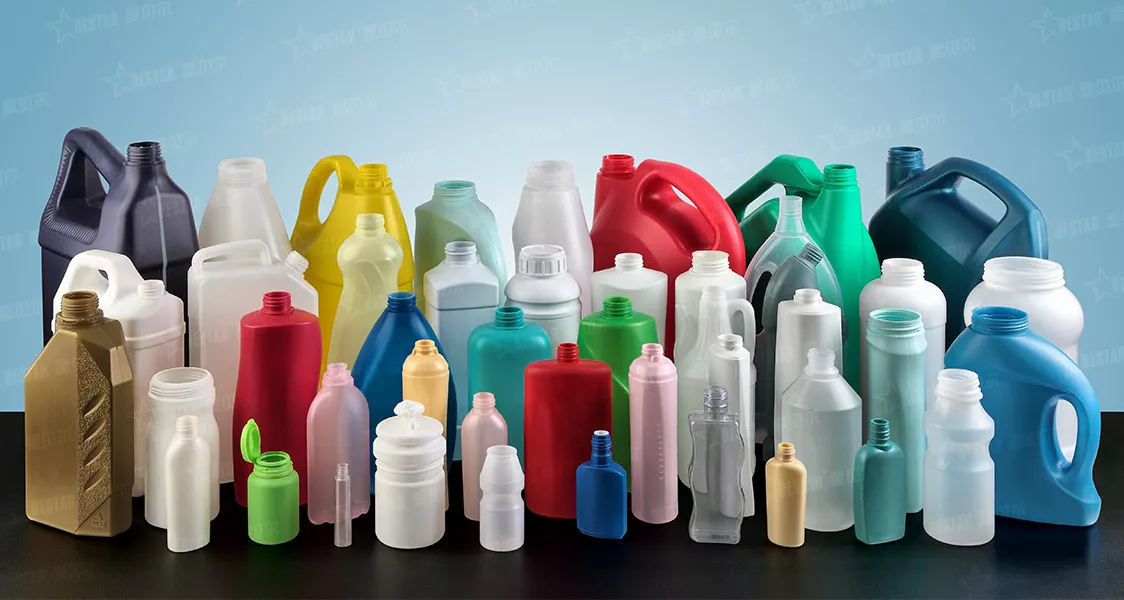

Series blow molding machine is used for blowing 100ml-1250L HDPE PE PP products like milk bottles, daily chemical packaging bottles, jerry cans, pesticide bottles / medicine bottles and stacking barrels.
Please write your machine inquire Email, Phone Number and Company Name here, we will respond within 12h. Or you can directly contact us: Email: sales@bestarmachinery.com or at Whatsapp/Wechat +86 18862609888.
